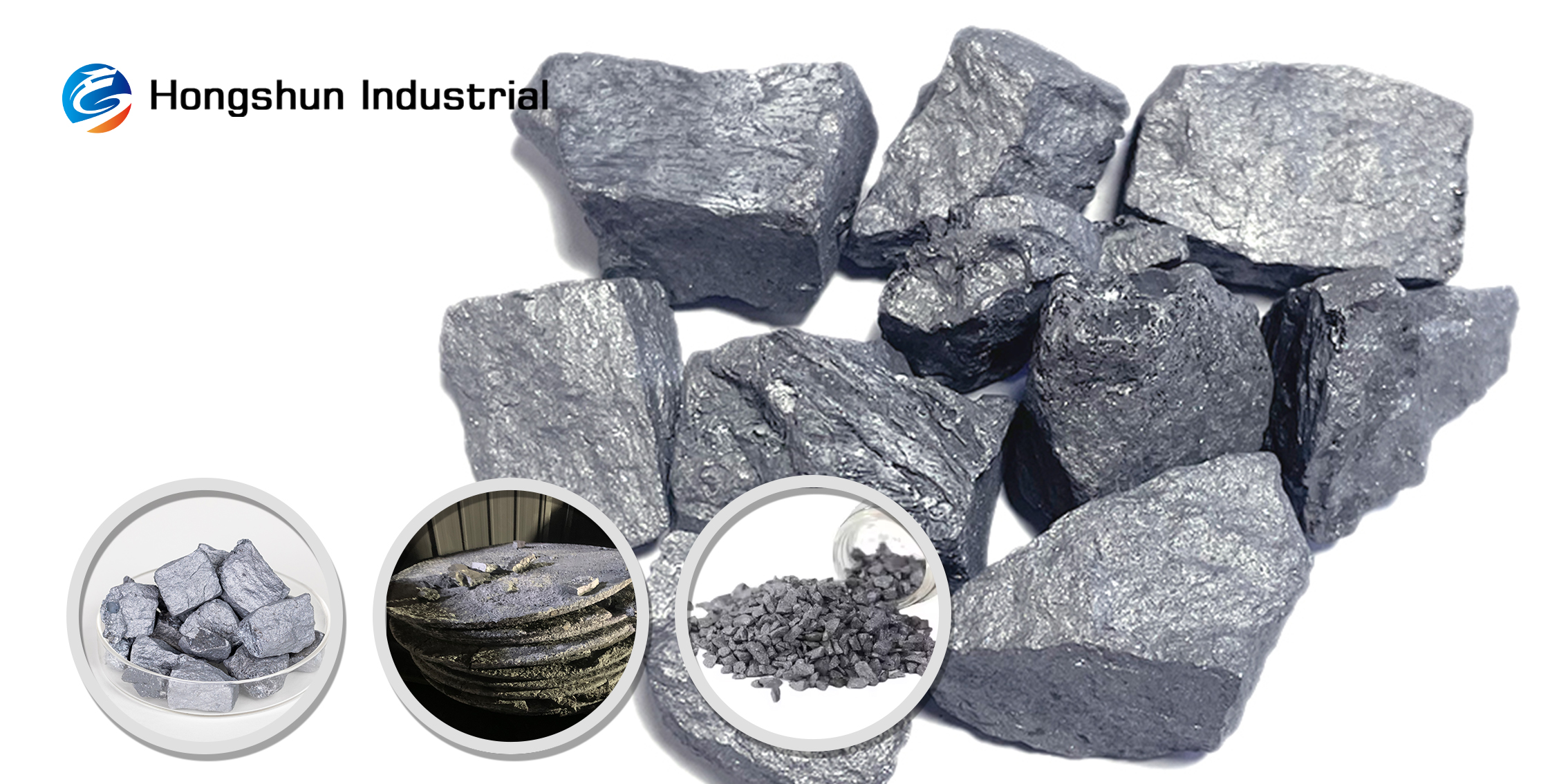

What Is Ferrosilicon Magnesium Nodulizer

Ferro Silicon Magnesium (FeSiMg) is a specialized ferroalloy serving as the primary nodulizing agent in ductile iron production. This master alloy combines iron, silicon, and magnesium—often with rare earth elements and calcium—to transform flake graphite into spherical graphite nodules during solidification. The result is ductile iron (also called nodular or spheroidal graphite iron) with dramatically improved mechanical properties: 3-5 times higher toughness and 2-3 times higher tensile strength than conventional gray cast iron.

Key Applications & Industries

Primary Use: Ductile Iron Production

Over 90% of global FeSiMg consumption goes toward nodulizing treatment in ductile iron manufacturing. When added to molten iron at 1.0-1.5% of melt weight, magnesium atoms adsorb onto nascent graphite crystals, suppressing flake growth and forcing uniform spherical formation.

Critical components enabled by FeSiMg nodulization include:

Secondary Applications

• Compacted Graphite Iron (CGI): FeSiMg produces CGI with higher strength, improved wear resistance, and better thermal conductivity than gray iron—ideal for engine components and brake discs

• Inoculant for thin-wall castings: Refines graphite nodule size and distribution while promoting grain refinement

• Desulfurization aid: Reacts with sulfur to form magnesium sulfide (MgS), floating as slag in limited steelmaking applications

Chemical Composition & Available Grades

FeSiMg nodulizers typically contain 38-46% silicon, 4-11% magnesium, 1-8% rare earths, and 1-4% calcium, with iron as balance. Standard grades include:

Custom compositions available upon request

Particle Size Options

FeSiMg nodulizer is available in multiple size fractions to suit different treatment methods:

• 0.25-2mm – In-mold and fine application

• 1-5mm – Precision ladle addition

• 3-8mm – Standard ladle treatment

• 5-20mm – Open ladle and sandwich process

• 5-35mm – General foundry use

Custom sizes available per customer specification

Treatment Methods

In-ladle nodulization remains the most widely used technology globally, with Fe-Si-Mg alloys employed across several established processes:

• Sandwich Process: Nodulizer placed in a ladle pocket, covered with steel punchings, then molten iron added

• Plunging (Immersion): Alloy introduced via a refractory bell submerged in the melt

• Tundish-Cover Process: Covered ladle generates pressure, improving magnesium recovery

• In-Mold Process: Nodulizer placed directly in the mold cavity

For best results, molten iron sulfur content should not exceed 0.02%—ideally 0.01% or lower—prior to nodulization.

Quality Advantages of Premium FeSiMg Nodulizers

High-performance FeSiMg alloys offer:

• Minimal deviation in critical elements—stable batch-to-batch composition

• Low MgO content—reduces slag formation and improves magnesium efficiency

• High magnesium absorption rates—lower consumption per ton of melt

• Strong anti-decay characteristics—maintains nodularity over extended holding times

• Adaptability—performs consistently across varying melt conditions

Premium manufacturers control ingot thickness (10- 15 mm optimal) and remove surface oxides after solidification to ensure product purity.

Packaging & Logistics

Standard packaging options:

• 25 kg bags with inner moisture-proof liner

• 1-ton jumbo bags for bulk shipping

• Custom packaging available upon request

Supply capacity typically ranges from 1 ton MOQ, with delivery 7-15 days after contract confirmation.

For technical specifications, pricing, or to request samples of Ferro Silicon Magnesium Nodulizer, please contact our sales team.
