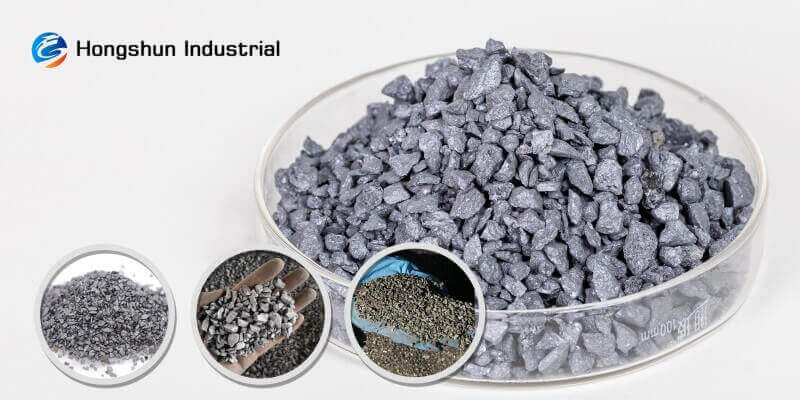

Low-titanium high-purity ferrosilicon (FeSi) is a specialized ferroalloy engineered for demanding metallurgical applications where impurity control is critical. This premium-grade material is distinguished by its strictly controlled titanium content—typically ≤0.05% or even ≤0.03%—along with minimal levels of aluminum, calcium, carbon, and other trace elements. Unlike standard ferrosilicon grades, low-titanium high-purity FeSi undergoes secondary refining processes to achieve the exceptional cleanliness required for high-performance steelmaking.
In the production of electrical steel, oriented silicon steel, and other specialty steels, titanium acts as a detrimental impurity that can significantly compromise final product quality. Even trace amounts of titanium can form non-metallic inclusions such as titanium nitride (TiN) and titanium carbide (TiC), which:
Reduce magnetic induction and increase core loss in transformer and motor steels
Cause surface defects and brittleness during rolling or annealing processes
Lower electrical resistivity, affecting energy efficiency and magnetization behavior
Create inclusion-forming oxides that compromise steel cleanliness and mechanical performance
Once introduced during steelmaking, titanium is extremely difficult to remove during secondary refining, making the use of low-titanium ferrosilicon essential from the outset.
Electrical Steel Manufacturing
Low-titanium high-purity FeSi is indispensable for producing high-grade electrical steels used in transformer cores, generators, and electric motors. The low impurity levels ensure consistent magnetic domain structure, resulting in higher permeability, reduced hysteresis loss, and superior energy efficiency.
Specialty Steel Production
This material is critical for manufacturing:
Bearing and gear steels requiring high wear resistance and fatigue lifetime
Spring steels demanding high elasticity and yield strength
Tire cord steel where minimal inclusions prevent breakage during fine drawing
Rail steel requiring wear resistance and rolling contact fatigue resistance
Tool steel with demanding hardness, toughness, and strength requirements
Foundry Industry
In ductile and gray iron casting, high-purity FeSi serves as an effective inoculant and nodulizer enhancer. It promotes uniform graphite precipitation, enhances casting density, and prevents chill tendency in iron castings.
Magnesium Production
The Pidgeon process for magnesium smelting relies on high-purity ferrosilicon as a reducing agent. Its high silicon activity and low impurity levels improve metal recovery rates and final product purity.
Element | Specification Range |
|---|---|
Silicon (Si) | 75.0 – 77.0% |
Iron (Fe) | Balance |
Titanium (Ti) | ≤ 0.03 – 0.05% |
Aluminum (Al) | ≤ 0.5 – 1.0% |
Calcium (Ca) | ≤ 0.2 – 0.5% |
Carbon (C) | ≤ 0.10 – 0.15% |
Phosphorus (P) | ≤ 0.02 – 0.03% |
Sulfur (S) | ≤ 0.02% |
Specifications may vary by supplier and application requirements.
The production of low-titanium high-purity ferrosilicon involves a two-stage refining process:
Initial Smelting: High-grade quartz, clean steel scrap, and carbonaceous reducing agents are smelted in a submerged arc furnace to produce conventional ferrosilicon.
Secondary Refining: The crude ferrosilicon is remelted under controlled conditions with specially formulated refining slag that captures and removes titanium, calcium, and aluminum. Vacuum or inert gas protection prevents re-oxidation during this critical stage.
Quality Verification: Each batch undergoes rigorous spectrographic analysis to verify that titanium and other impurity levels meet stringent specifications.
China remains the world's largest ferrosilicon producer, accounting for approximately 66% of global production. Major global producers include Erdos, Wuhai Junzheng, Ferroglobe, and Elkem. The high-purity segment, including low-titanium grades, represents a specialized market niche serving premium steel applications with demanding cleanliness requirements.
Leading manufacturers maintain comprehensive quality management systems including:
ISO 9001, ISO 14001, and ISO 45001 certifications
ICP spectrometers for precise trace element analysis
SGS certification and detailed test reports for batch traceability
Customizable sizing from 10- 50 mm for specialty steel applications to powder grades for welding consumables
