How Is Silicon Manganese Produced?

Silicon manganese (SiMn) is one of the most widely used ferroalloys in the steel industry, serving as a cost-effective deoxidizer and alloying agent. Understanding its production process is valuable for steelmakers, procurement professionals, and anyone involved in the ferroalloy supply chain. This guide walks through the complete silicon manganese production process—from raw material preparation to final product handling.

1. Raw Materials: What Goes Into the Furnace

Silicon manganese production starts with blending several key raw materials:

The selection of manganese ore blend is driven by techno-economic factors, with higher-grade ore added to increase the Mn content of the final product. For producers using recycled materials, briquettes made from alloy fines and dust are often fed back into the furnace to improve efficiency and reduce waste.

2. Smelting: The Core Process

The heart of silicon manganese production is the submerged arc furnace (SAF). Most commercial SiMn is produced in circular, three-phase furnaces with three Söderberg electrodes arranged in an equilateral triangle.

Furnace Types and Operation

There are two main smelting configurations:

• Submerged-arc mode: Electrode tips are buried in the charge. Low voltage, high current. The electric energy is liberated through resistance heating in the conductive charge mix. This is the most common method for SiMn production.

• Open-arc mode: Electrodes are visible above the charge, with arcs radiating heat to the burden. Some operations use "open" furnace designs where the burden top is exposed to atmosphere for visual inspection and rabbling (levelling the charge).

The Chemistry

The smelting process is fundamentally carbothermic reduction—using carbon to reduce manganese and silicon oxides from the ore and quartz. The key reduction reactions are:

MnO + C → Mn + CO (starts ~1404°C)

SiO₂ + 2C → Si + 2CO (starts ~1660°C)

FeO + C → Fe + CO (starts ~712°C)

In practice, iron and manganese are reduced first, forming a high-carbon intermediate. At higher temperatures, silicon reacts with this intermediate to form the final SiMn alloy.

Temperature and Energy

Process temperatures typically range from 1600–1650°C in the reaction zone. Specific power consumption for SiMn production is 3500–4500 kWh per ton of alloy—higher than ferromanganese due to the extra energy needed to reduce silica.

3. Tapping and Separation

Once smelting is complete, the furnace is tapped to release:

1. Molten silicon manganese alloy — the primary product

2. Slag — a byproduct containing residual oxides and flux materials

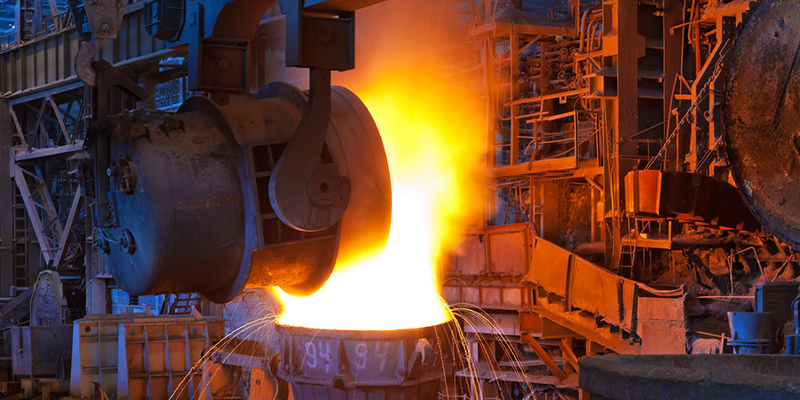

The alloy and slag are separated by gravity in a launder system or ladle. The slag is typically water-quenched (granulated) and can be discarded or further processed to recover remaining manganese.

4. Refining and Casting

The tapped alloy is sampled and sent to the lab for quality inspection to verify it meets the required specifications (e.g., FeMn68Si18). After approval:

• The molten alloy is cast into ingots or pigs

• Once cooled, ingots are crushed to the required lump size (typically 10–150mm)

• Fines (under 6mm) are often recycled back into the process via briquetting

5. Quality Control: What Producers Watch For

Manganese recovery and silicon recovery are the key economic drivers. Every 1% decrease in feed Mn grade increases power consumption by approximately 135 kWh per ton, so ore selection is critical.

Key Takeaways

• Silicon manganese is produced in submerged arc furnaces via carbothermic reduction

• Raw materials include manganese ore, quartz, coke/coal, and flux — with recycled fines often added

• Smelting requires 1600–1650°C and consumes 3500–4500 kWh/ton

• The process yields both alloy (primary product) and slag (byproduct for manganese recovery)

• Quality is controlled through ore blending, slag basicity adjustment, and laboratory testing

For more detailed information on specific furnace operations or raw material sourcing, feel free to reach out. If you're interested in market trends or price analysis, check our SiMn Market Outlook section.
