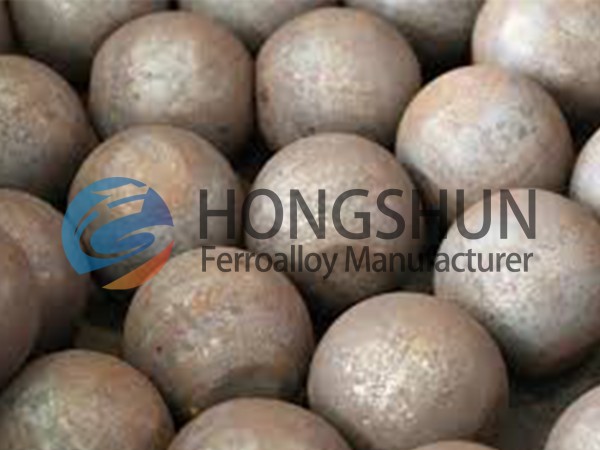

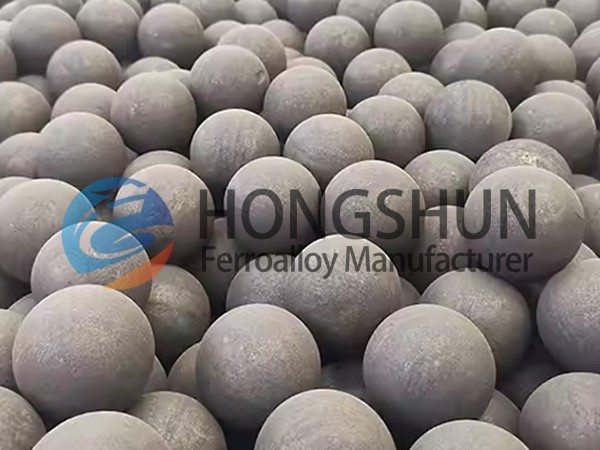

Forged grinding balls are premium-quality steel balls used in ball mills for grinding raw materials in mining, cement, and other industrial applications. Manufactured through a rigorous forging process, these grinding media offer superior hardness, impact resistance, and wear performance compared to cast alternatives.
As global mining operations demand higher efficiency and lower downtime, forged grinding balls have become the preferred choice for mineral processing plants seeking optimal size reduction and cost savings.
Made from high-carbon, alloy steel billets
Premium raw materials ensure consistent hardness (typically 58-65 HRC)
Steel billets heated to 1200°C and hammer-forged into spherical shapes
Grain structure becomes dense and uniform, enhancing toughness
Quenching & tempering optimize hardness-core toughness balance
Eliminates internal stresses that cause premature failure
Strict dimensional tolerances (±0.5mm) ensure smooth mill operation
Key Advantage: Forged balls maintain their spherical shape longer than cast balls, preventing "sliding" inefficiencies in mills.
| Parameter | Forged Grinding Balls | Cast Grinding Balls |
|---|---|---|
| Hardness (HRC) | 58-65 | 45-55 |
| Impact Toughness (J/cm²) | ≥12 | ≤6 |
| Wear Rate (g/ton material) | 30-80 | 80-150 |
| Breakage Rate | <0.5% | 2-5% |
Field Data: A Chilean copper mine reported 35% longer service life with forged balls versus cast alternatives, reducing media consumption by 28%.
Gold, copper, iron ore processing
Consistent particle size distribution improves flotation recovery rates
Clinker grinding in ball mills
Lower wear reduces contamination in final product
Coal pulverization for efficient combustion
While forged grinding balls have 20-30% higher upfront cost than cast balls, their total cost of ownership is lower due to:
Longer service life (replacement frequency reduced by 30-50%)
Higher grinding efficiency (up to 15% energy savings in mill operation)
Reduced downtime (fewer broken balls requiring removal)
Case Study: An Australian gold processor achieved ROI in 5 months after switching to premium forged grinding media.
Reputable manufacturers comply with:
ISO 9001:2015 quality management
ASTM E18 hardness testing standards
Mine-site specific certifications (e.g., MSHA for US operations)
When sourcing forged grinding balls:
Material Certification - Request mill test reports for chemical composition
Hardness Testing - Verify surface & core hardness consistency
Supplier Track Record - Prefer vendors with mining industry references
Customization - Available diameters from 20mm to 150mm
Monitor wear rates monthly to detect mill lining issues
Optimize ball charge with proper size distribution (typically 50-100mm for primary grinding)
Avoid overloading - maintain 30-35% mill filling ratio
Modern forged grinding balls contribute to sustainable operations through:
Lower consumption - reduces mining waste
Energy efficiency - decreases power usage per ton ground
Recyclability - worn balls are 100% recyclable as steel scrap
Forged grinding balls represent the pinnacle of grinding media technology, delivering unmatched durability and operational savings for mineral processing operations. By investing in high-quality forged balls from certified manufacturers, mining and cement plants can significantly improve their grinding circuit performance while reducing long-term operating costs.
For operations seeking to optimize their milling efficiency, conducting a grinding media audit with forged ball specialists can reveal substantial cost-saving opportunities. The initial premium pays dividends through extended service life, consistent grinding performance, and reduced maintenance requirements.
Industry Insight: The global forged grinding balls market is projected to grow at 5.8% CAGR through 2030, driven by increasing mining activities and demand for energy-efficient grinding solutions.
