Ferro Silicon Barium Calcium Inoculant Production Process

Ferro Silicon Barium Calcium(FeSiBaCa) inoculant is a highly effective additive used in the metallurgy industry, particularly in the inoculation of gray cast iron and ductile iron. It combines the benefits of silicon (Si), barium (Ba), and calcium (Ca) to enhance graphite morphology, refine grain structures, and reduce chill tendencies.

Compared to traditional ferro silicon inoculant types, FeSiBaCa offers a longer-lasting inoculation effect and improved metallurgical stability, making it a preferred choice in modern foundries.

Raw Materials and Composition

The typical composition includes:

• Silicon (Si): 60–72%

• Barium (Ba): 2–10%

• Calcium (Ca): 1–2%

• Aluminum (Al): <2%

• Carbon, S, P: Kept as low as possible

FeSiBaCa is often used together with a nodulizer for ductile iron to improve spheroidization and matrix control in the production of high-quality ductile iron castings.

Production Process Overview

1. Raw Material Preparation

High-purity silicon, barium-containing ores, and calcium-bearing compounds are selected. The selection of materials with low phosphorus and sulfur is critical to prevent contamination.

2. Smelting in Submerged Arc Furnace

The mixture is charged into a submerged arc furnace. During smelting:

• Silicon reduces barium and calcium oxides.

• The exothermic reactions help maintain a stable temperature.

• Slag formation must be controlled to ensure proper alloy absorption.

This process is similar in its core principles to silicon calcium alloy manufacturing but optimized for enhanced inoculation behavior.

3. Alloy Refinement

The molten alloy is further refined by:

• Adding deoxidizers such as aluminum

• Removing inclusions via slag skimming

• Maintaining a controlled cooling rate to enhance microstructure

Crushing, Screening, and Packaging

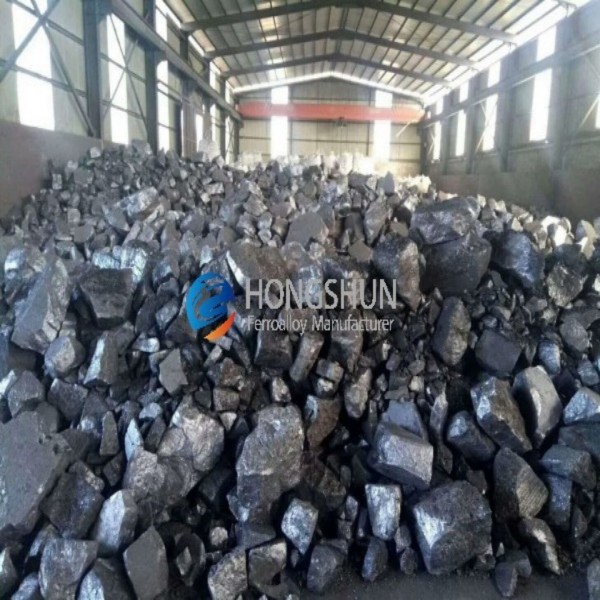

After solidification:

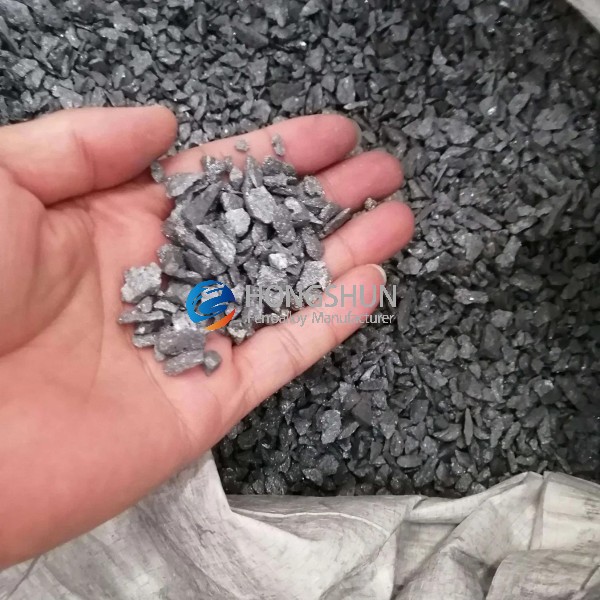

• The ingots are crushed and screened into specific size ranges (0–2 mm, 2–6 mm, 3–8 mm), tailored for different ladle or stream inoculation processes.

• The product is packed in moisture-resistant bags or drums.

Hongshun provides size customization to meet customer needs, ensuring precise high-efficiency cast iron additives for varied foundry processes.

Application and Advantages

In Gray Iron:

FeSiBaCa inoculant enhances A-type graphite distribution, prevents carbides, and reduces chill depth. It also increases tensile strength and elongation.

In Ductile Iron:

Used in pre-conditioning and late inoculation stages alongside ferro silicon magnesium nodulizer to promote spherical graphite growth.

Key Benefits:

• Excellent anti-recession property

• Increased graphite nucleation sites

• Reduced shrinkage and porosity

• More stable mechanical properties

Comparison with Other Inoculants

Unlike simple silicon calcium alloy additives, FeSiBaCa combines barium’s powerful anti-chill behavior with calcium’s nucleation effect, ensuring better control over solidification.

Environmental and Economic Considerations

Modern FeSiBaCa production adheres to environmental standards, minimizing CO and SOx emissions. Optimized energy usage also helps reduce overall manufacturing costs. Using multi-functional inoculants like FeSiBaCa decreases the need for multiple additive types, lowering operational costs for foundries.

About Hongshun Industrial

Hongshun Industrial is a professional manufacturer of ferroalloys and inoculants, including high-purity Ferro Silicon Barium Calcium Inoculant, Ferro Silicon Magnesium Nodulizer, and Silicon Calcium Alloy. With advanced production equipment, strict quality control systems, and rich industry experience, Hongshun supplies cast iron additive solutions to over 30 countries.

Hongshun's commitment to stable chemical composition, fast delivery, and technical support has earned the trust of leading foundries globally. Contact Hongshun Industrial to get a customized quote and expert advice on how to choose the right inoculant for your specific foundry needs.

FeSiBaCa inoculant represents a critical advancement in cast iron metallurgy. Its combined benefits of silicon, barium, and calcium improve mechanical properties, reduce casting defects, and ensure consistency. By integrating it into your inoculation process, and choosing a reliable supplier like Hongshun, your foundry can achieve both metallurgical excellence and operational efficiency.
