In modern foundry operations, the quest for superior cast iron properties—enhanced tensile strength, refined graphite structure, and minimized defects—hinges on one critical component: the inoculant. Among the various options available, Calcium Silicon Inoculant stands out as the industry standard, offering a unique combination of graphitizing power, nucleation efficiency, and molten metal purification. This guide delves into the technical specifications, applications, and performance benefits that make CaSi inoculant an indispensable tool for foundries worldwide.

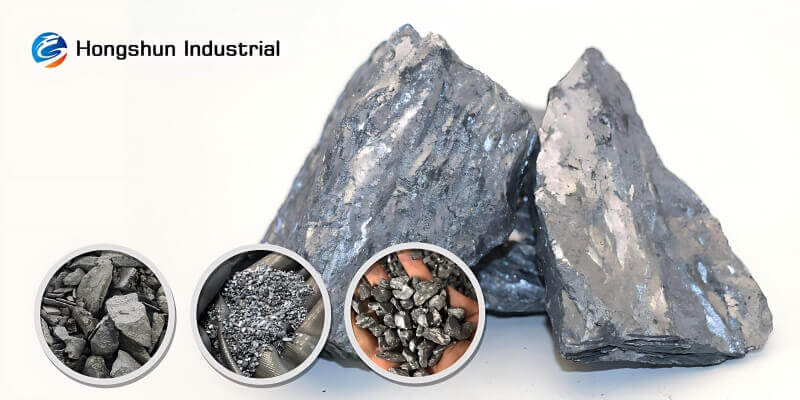

Calcium Silicon is a ferroalloy composed primarily of silicon and calcium, with typical compositions ranging from 55-65% silicon and 28-31% calcium, along with trace elements like aluminum, carbon, and iron. This specific balance is not arbitrary; it is engineered to deliver powerful inoculation effects. When added to molten cast iron, CaSi serves multiple critical functions:
Potent Deoxidizer and Desulfurizer: Calcium has a strong affinity for oxygen and sulfur. It reacts to form stable compounds like CaO and CaS, which float out of the melt, resulting in cleaner, more fluid metal with fewer inclusions.
Effective Graphitizer and Nucleation Agent: The alloy promotes the formation of graphite during solidification. By providing a large number of heterogeneous nucleation sites, it encourages the precipitation of fine, uniformly distributed graphite particles, preventing the formation of hard, brittle white iron (chill).
Property Enhancer: By refining the graphite structure and purifying the matrix, CaSi inoculation significantly boosts the mechanical properties of cast iron, including tensile strength, impact toughness, and machinability.
When sourcing Calcium Silicon Inoculant, understanding its chemical makeup and physical form is crucial. The effectiveness of inoculation depends heavily on the calcium content, which is the primary active element for nucleation and graphite modification.
Grade | Silicon (Si) % | Calcium (Ca) % | Aluminum (Al) % max | Carbon (C) % max | Phosphorus (P) % max | Sulfur (S) % max |
|---|---|---|---|---|---|---|
Ca31Si60 | 55 - 65 | ≥ 31 | 2.4 | 1.0 | 0.04 | 0.05 |
Ca28Si60 | 55 - 65 | ≥ 28 | 2.4 | 1.0 | 0.04 | 0.05 |
Ca20Si65 | ≥ 65 | ≥ 20 | - | - | - | - |
Data compiled from industry standard specifications.
Different types of cast iron require specific inoculant characteristics. Here’s a targeted selection guide based on current industry practices :
Cast Iron Type | Recommended Grade | Rationale |
|---|---|---|
Gray Cast Iron | Ca20Si65 / Ca28Si60 | High silicon content provides rapid graphitization, effectively eliminating chill and improving fluidity in thin-wall castings. The balanced Ca-Si ratio in Ca28Si60 offers stable results for mass production. |
Ductile Iron | Ca28Si60 / Ca30Si60 | High-calcium grades are essential to counteract spheroidizing recession and refine graphite nodules. They ensure high nodularity (>85%), enhance tensile strength, and reduce shrinkage porosity. |
High-Strength Alloy Cast Iron | Ca30Si60 (High-Purity) | Ultra-high calcium content provides strong anti-fading performance and deep purification, preventing inoculation failure caused by interfering alloy elements. |
The efficacy of Calcium Silicon Inoculant is not just about the alloy itself but also how it is applied. Key variables that significantly affect the outcome include:
1. Addition Amount and Fading Effect
The typical addition rate ranges from 0.2% to 0.5% of the molten iron weight, with higher rates sometimes used for specific applications. It is critical to pour the iron as soon as possible after inoculation because the effect is known to "fade" over time. The active nucleation sites can diminish, rendering the inoculation less effective. Pouring immediately after addition ensures maximum benefit.
2. Grain Size and Temperature
The particle size of the inoculant influences its dissolution and effectiveness. Research indicates that a grain size of 6 to 12 mesh is often preferable for optimal performance. Furthermore, the temperature of the melt plays a role. For instance, a classic study from 1956 found that Ca-Si's inoculating efficiency was very high at temperatures above 1500°C for certain refined metals.
The superiority of Calcium Silicon over standard Ferrosilicon (FeSi) for inoculation is well-documented. Comparative tests have demonstrated the significant performance gains achievable with CaSi.
Property/Measurement | Ferrosilicon Inoculant | Calcium Silicon Inoculant |
|---|---|---|
Tensile Strength (psi) | 51,470 | 59,200 |
Transverse Load (lbs) | 2,905 | 3,728 |
Chill Depth | 12/32" clear, 20/32" total | 4/32" clear, 8/32" total |
Graphite Structure | Tendency for Type D/E (abnormal) | Promotes uniform Type A graphite |
Data compiled from comparative studies on cast iron inoculation.
As the data shows, using Calcium Silicon leads to a significantly higher tensile strength, a nearly 30% improvement in transverse load, and a dramatic reduction in chill depth compared to regular ferrosilicon. This directly translates to fewer casting defects, more consistent mechanical properties, and a reduction in scrap rates.
Calcium Silicon Inoculant is more than just a processing additive; it is a strategic tool for achieving metallurgical excellence. By carefully selecting the appropriate grade, optimizing the addition method, and understanding the underlying science, foundries can unlock superior quality, consistency, and cost-efficiency in their cast iron production. Its proven ability to enhance graphite structure, boost mechanical properties, and mitigate defects makes it the preferred choice for engineers and foundry professionals dedicated to producing world-class castings.
